How to 3D Scan Objects Using Polycam

Getting Started

Step 1: Request the iPad

Visit the Innovation Hub and ask the IT staff for the iPad designated for 3D scanning.

Step 2: Open Polycam

  • On the iPad home screen, tap the Polycam app (no sign-in required).
  • You do not need an account to start scanning.
Polycam application

Capturing Your Object

Step 3: Start a New Scan

  • Tap the Capture Tab (bottom left).
  • Press the + (plus) button to start a new scan.
Create a new scan instruction

Step 4: Choose "Object Mode"

  • Select Object Mode to begin scanning a physical item.

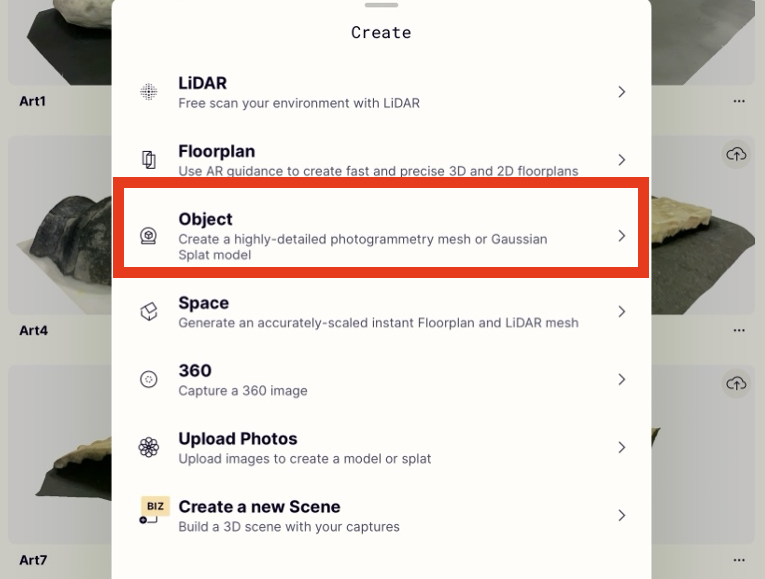

Select object instruction

Step 5: Choose Your Capture Mode

  • Guided Mode: Best for first-time users; provides step-by-step instruction.
  • Free Mode: Manual capture for the experienced users.

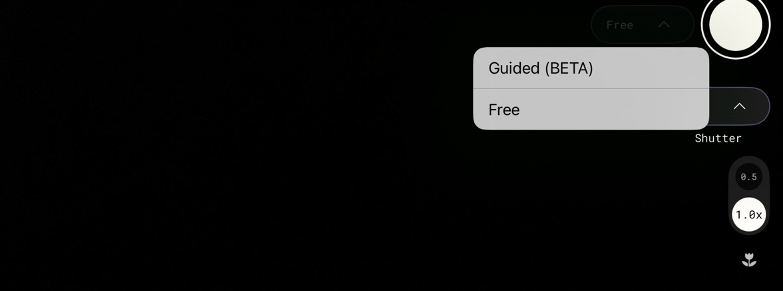

Guided mode instruction
Tips for Best Scanning Results
  1. Use a solid, stable surface. A black tablecloth is ideal for light-colored objects.
  2. Ensure good lighting. Natural or diffused lighting works best.
  3. Follow image count suggestions. Guided mode will indicate how many photos are required.
  4. Move slowly. Maintain a steady pace. The app may prompt you with feedback like "slow down".
  5. Capture all angles. Walk around your object and keep at least 50% image overlap.

Precessing and Exporting Your Scan

Step 6: Upload Images for Processing

  • After capturing, Polycam will prompt you to upload your images.
  • Processing time depends on image count and scan complexity.

Step 7: Review and Crop

  • Once processed, you can view and crop your scan.
  • The file will auto-save with the current date and time.

Step 8: Rename Your Scan

  • Tap the three dots next to the scan name.
  • In Capture Details, tap the pencil icon to rename or add a description.

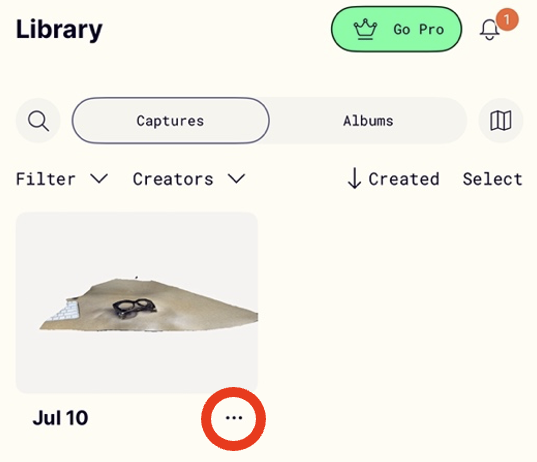

Select object mesh then export instruction

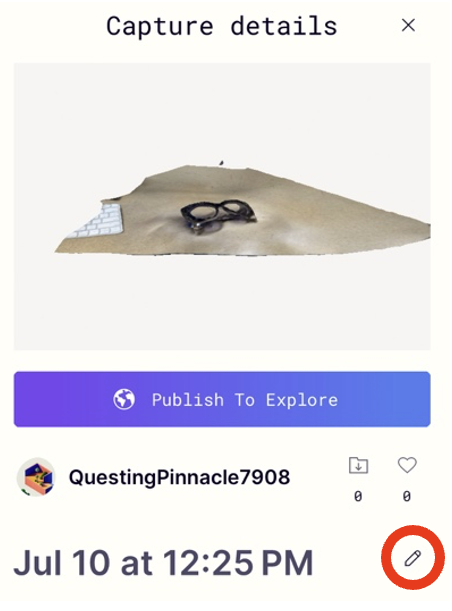

Step 8, select edit pencil

Step 9: Export Your 3D Model

  • Tap Download 3D Model to begin exporting.

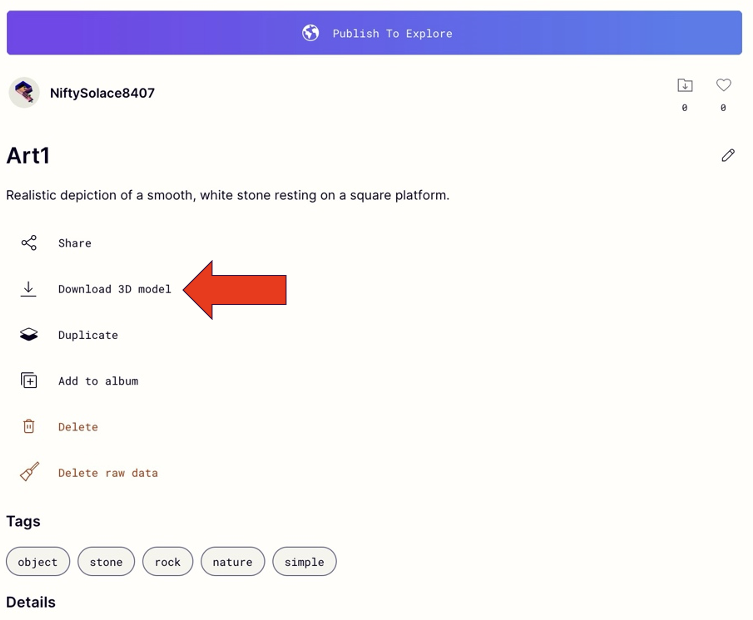

Step 9, Select Download 3D Model

Step 10: Chose a File Format

  • STL -- For 3D printing.
  • OBJ -- For use in 3D design or digital exhibitions.

Step 11: Export the File

  • Tap Export in the lower-right corner.

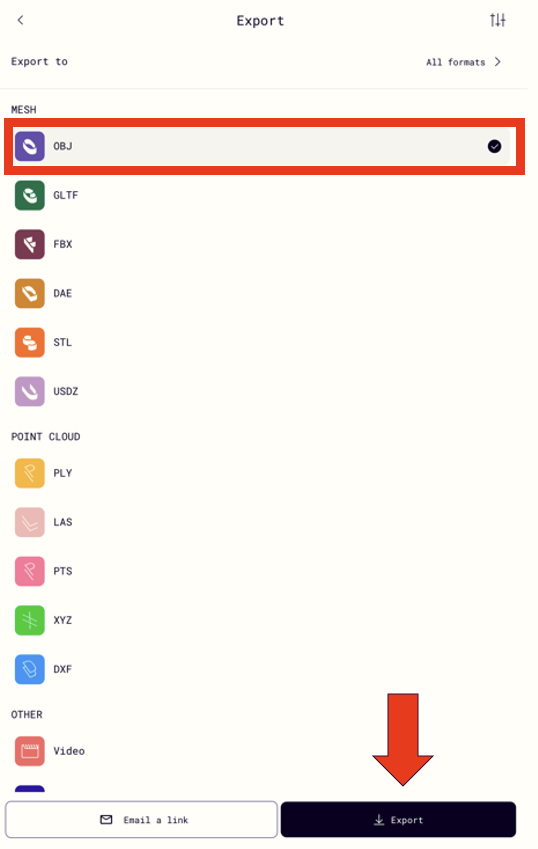

Step 11, Location of Export

Step 12: Transfer via AirDrop

  • AirDrop your file to your Apple device.
Note: The scanning iPad is currently locked, so AirDrop is the best method to transfer files off the device. Afterward, upload to Box or another platform if needed.

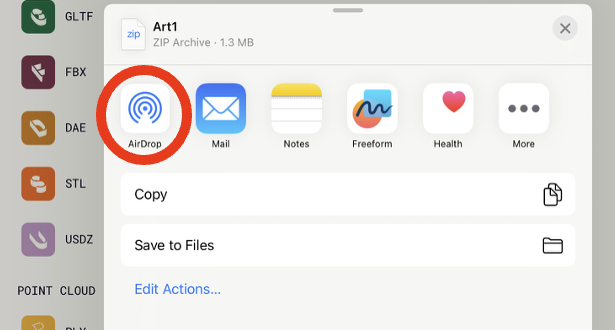

Step 12, Locationof AirDrop app

Notes about the different platforms:
Depending on your project needs, you may want to publish your 3D models. One of our projects was scanned artifacts of the Anthropology Museum in Old Main, so we found that using Sketchfab was the easiest way for patrons to access their 3D images and view them. Patrons can create a free account but are limited to 9 uploads before needing to pay for a subscription. Furthermore, the scanned items are public and viewable by anyone on the internet. Access Sketchfab at sketchfab.com.
